Product Description

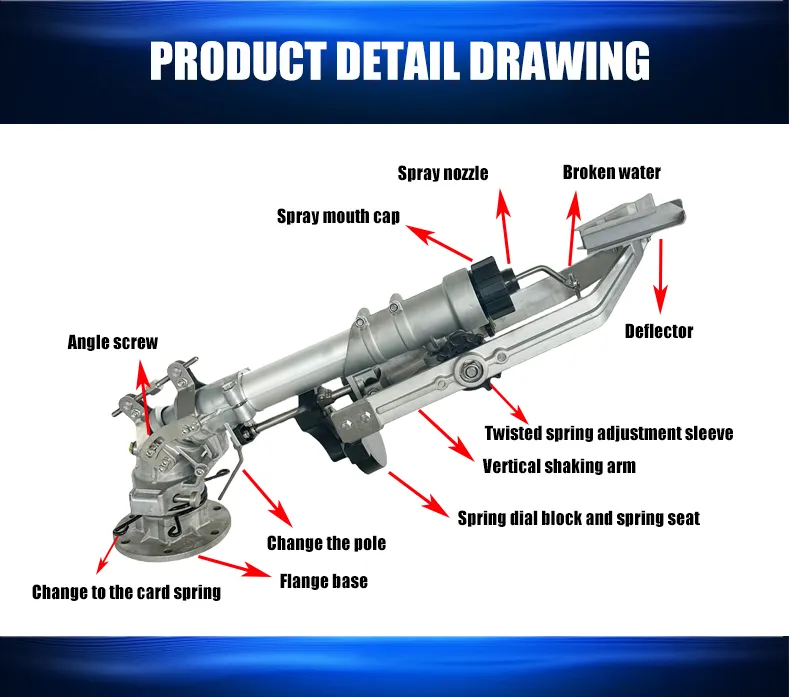

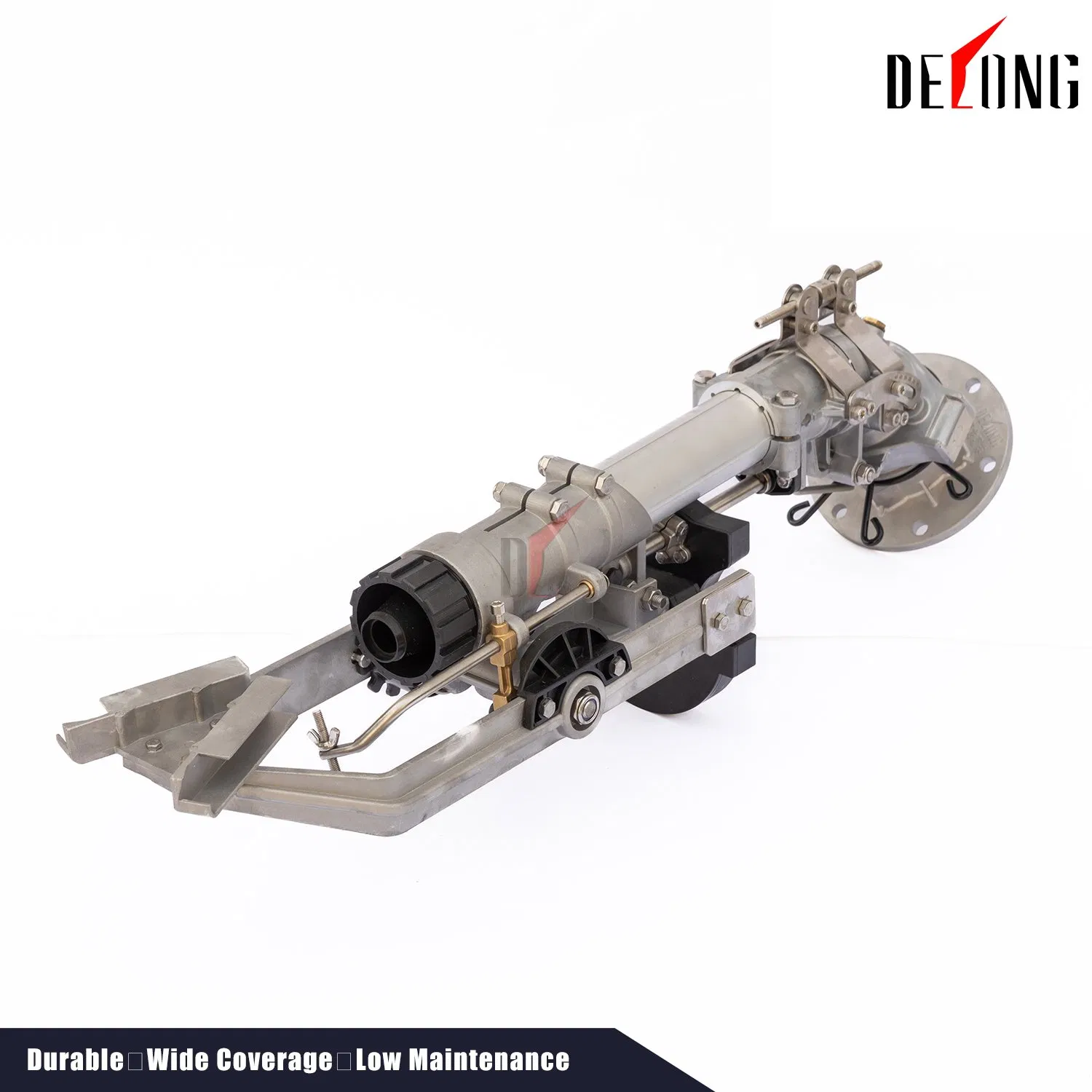

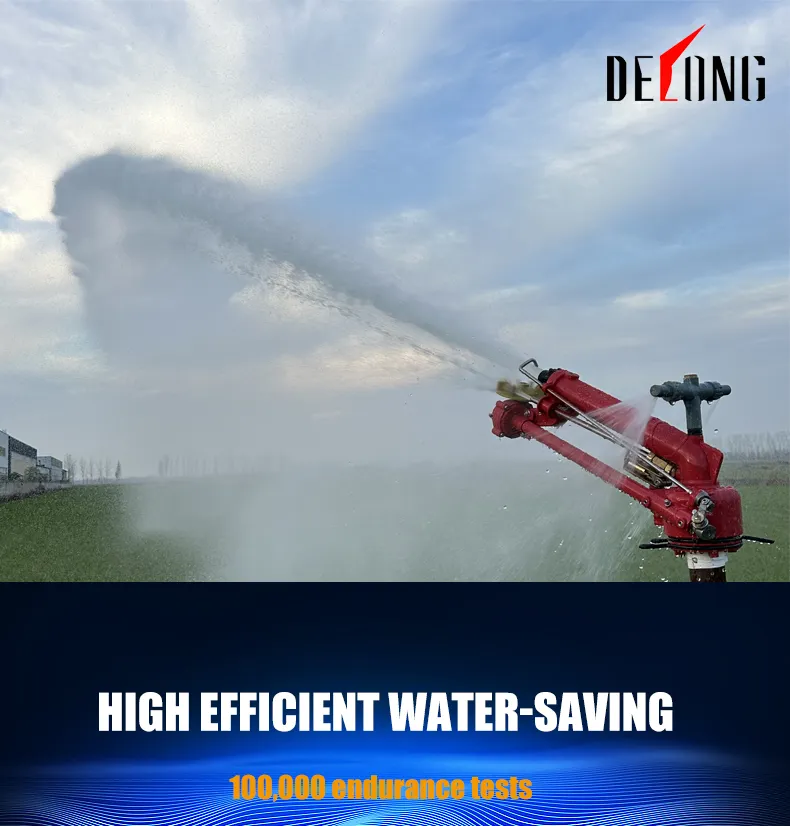

DLS50T [DLS65T] Angle adjustable metal rocker spray gun features advanced foreign technology and variable injection angle of large flow, long range of large injection, according to 0°-360° adjust spray rotating angle, 20°-45° adjust injection angle, new operation theory, prevent vibration and rebound, to ensure safe work.

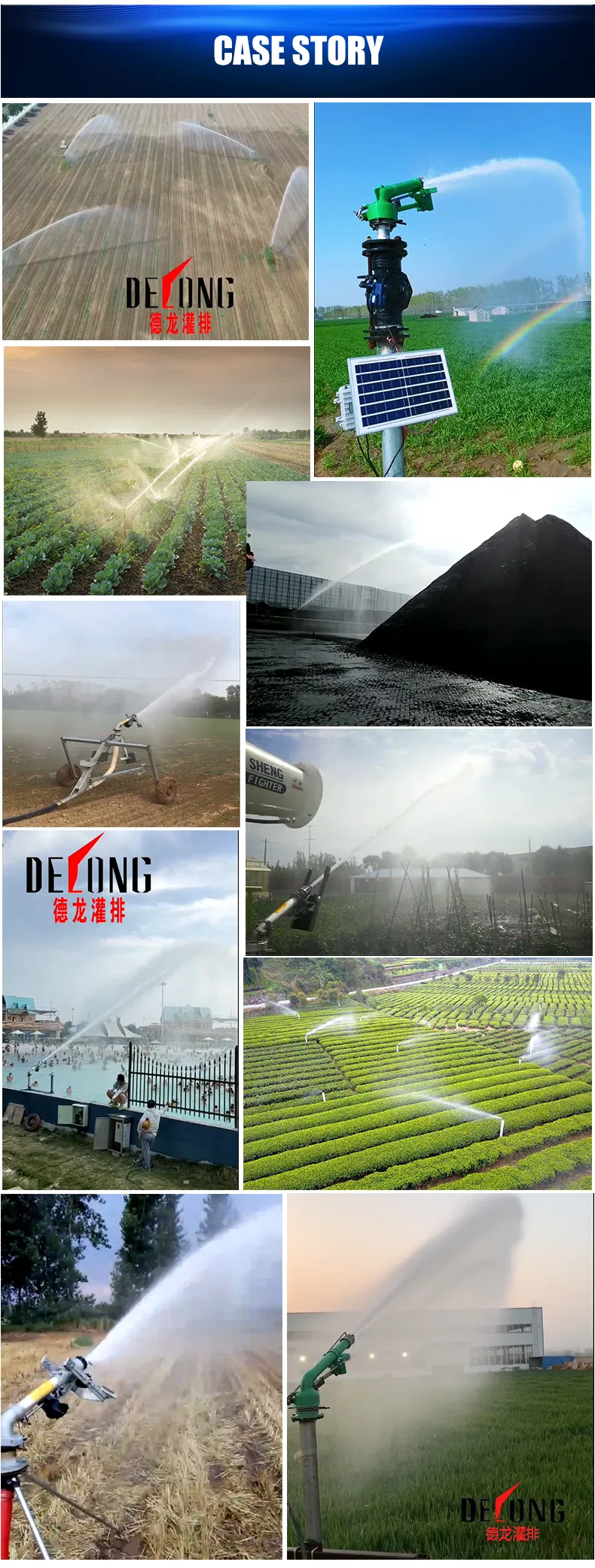

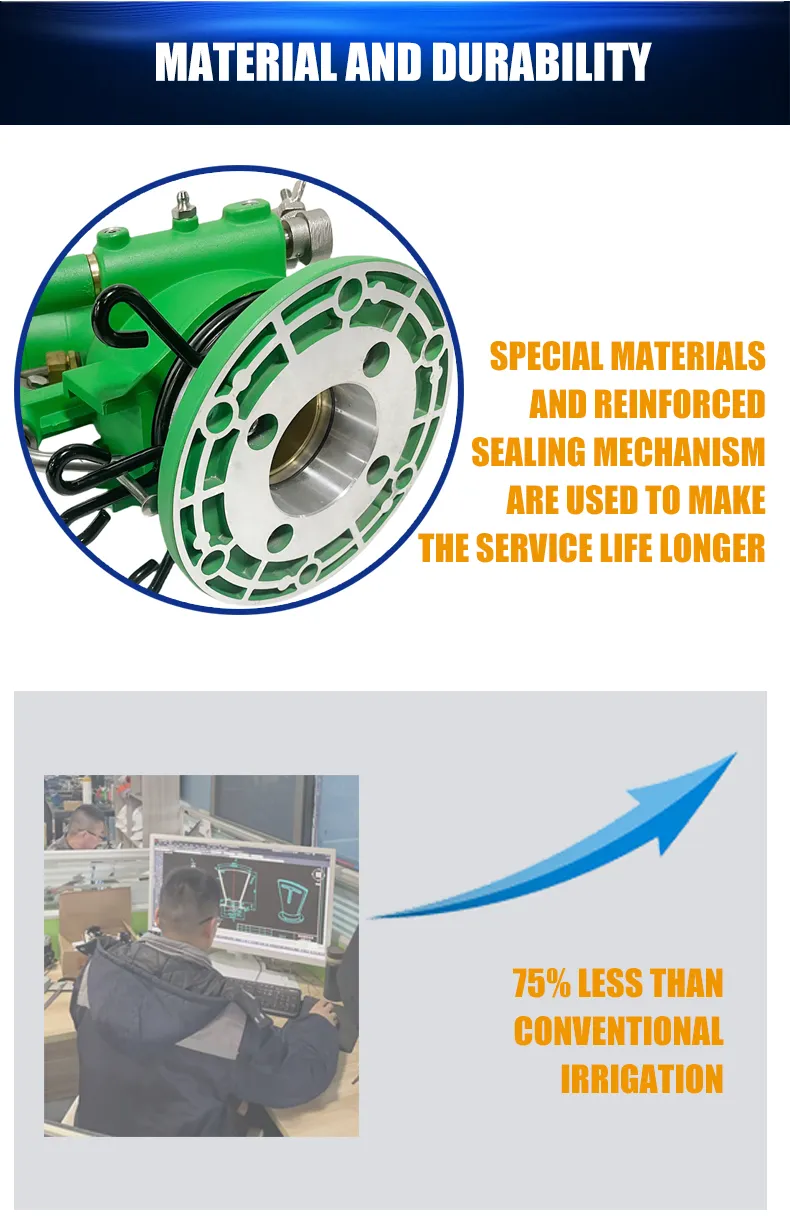

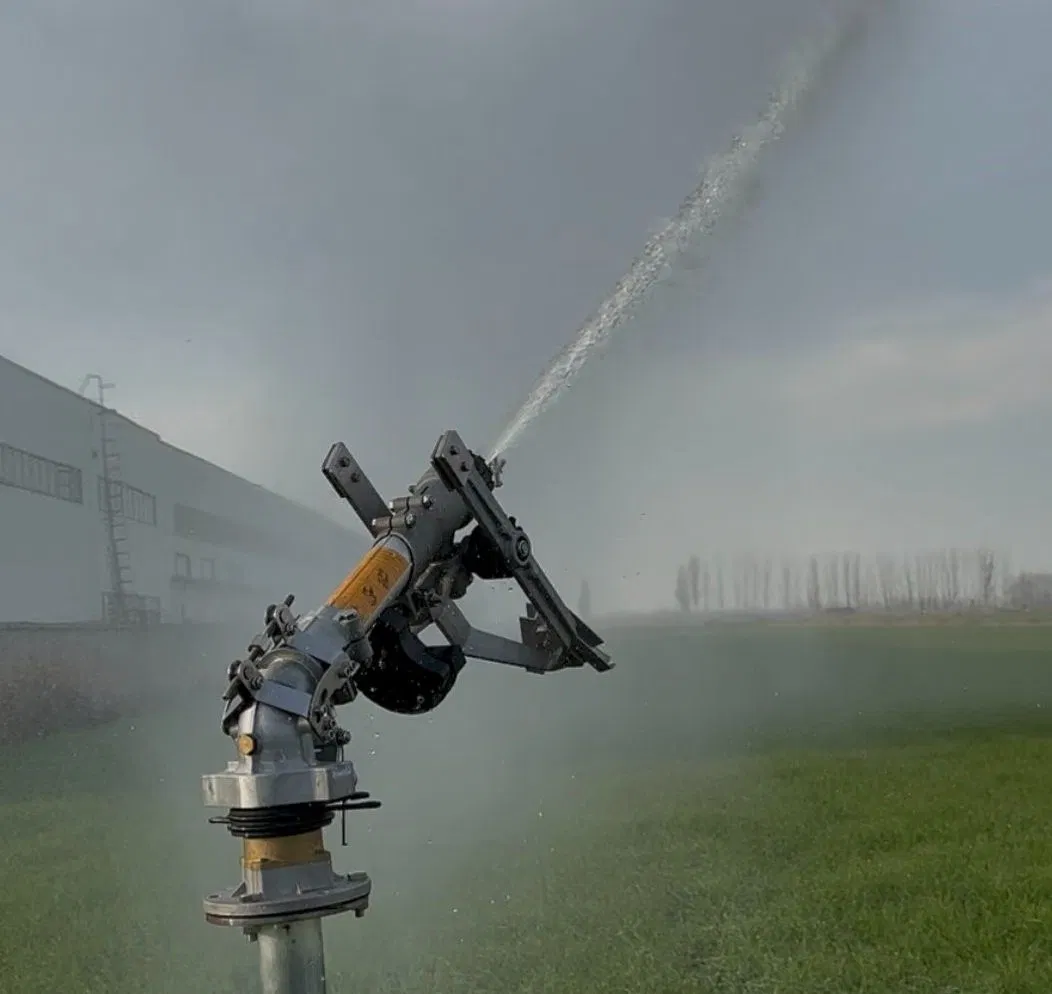

It is suitable for large and medium-sized winch irrigation machine and large pointer irrigation machine tail gun, large area irrigation project, stacking field, stadium and pasture, etc., adjustable injection angle, especially for windy places, as well as areas restricted by low altitude flight and high voltage line. It is also very suitable for industrial dust suppression and dust prevention, especially for the storage yard with special requirements for injection height. Its pressure resistance, sealing performance and stable and reliable operation can meet the requirements of spraying, equipped with a variety of different specifications of nozzles, can meet the needs of different soil, terrain, crops, environment.
| Nozzle Diameter (U) |
Pressure (P) |
Range (Q) |
Rate of Flow (G) |
| mm |
bar |
m3/h |
m |
| 14 |
2 |
25 |
15.5 |
| 3 |
29 |
17.2 |
| 4 |
32 |
18.9 |
| 5 |
35 |
20.1 |
| 16 |
2 |
27 |
17.8 |
| 3 |
32 |
21.8 |
| 4 |
35.5 |
25.2 |
| 5 |
37 |
28.1 |
| 18 |
2 |
29 |
23.1 |
| 3 |
34 |
27.1 |
| 4 |
36.5 |
31.6 |
| 5 |
38 |
35 |
| 20 |
2 |
33 |
29.6 |
| 3 |
36 |
31.2 |
| 4 |
40 |
36 |
| 5 |
41.5 |
40.3 |
| 22 |
3 |
39 |
38.4 |
| 4 |
41.5 |
44.2 |
| 5 |
42 |
47.3 |
| 6 |
46.5 |
51.8 |
| 24 |
3 |
41 |
46.7 |
| 4 |
43.5 |
49.2 |
| 5 |
45.5 |
55 |
| 6 |
48.5 |
60.3 |
| 26 |
3 |
42 |
51.1 |
| 4 |
44 |
56.7 |
| 5 |
47 |
63.4 |
| 6 |
49.5 |
69.6 |
| 7 |
51.5 |
75 |
| 28 |
3 |
44 |
58.1 |
| 4 |
45.5 |
67.3 |
| 5 |
48 |
75 |
| 6 |
50.5 |
82.1 |
| 7 |
53.5 |
90.1 |
| 30 |
4 |
47 |
76 |
| 5 |
49 |
85.1 |
| 6 |
51.5 |
94.2 |
| 7 |
54 |
98.2 |
| 8 |
55 |
101.1 |
Frequently Asked Questions
What is the rotation range of the spray gun?
The spray gun features a fully adjustable rotating angle from 0° to 360°, allowing for complete coverage customization.

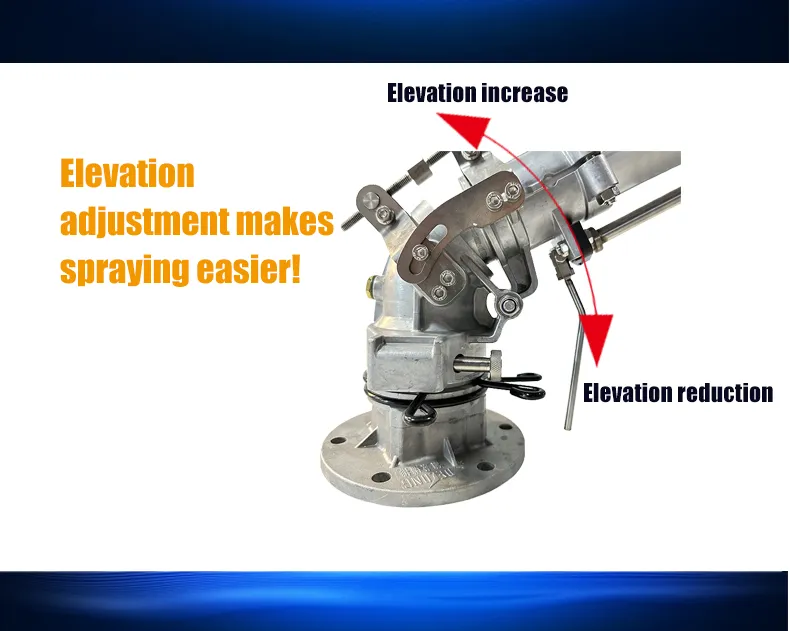

How can I adjust the jet elevation angle?

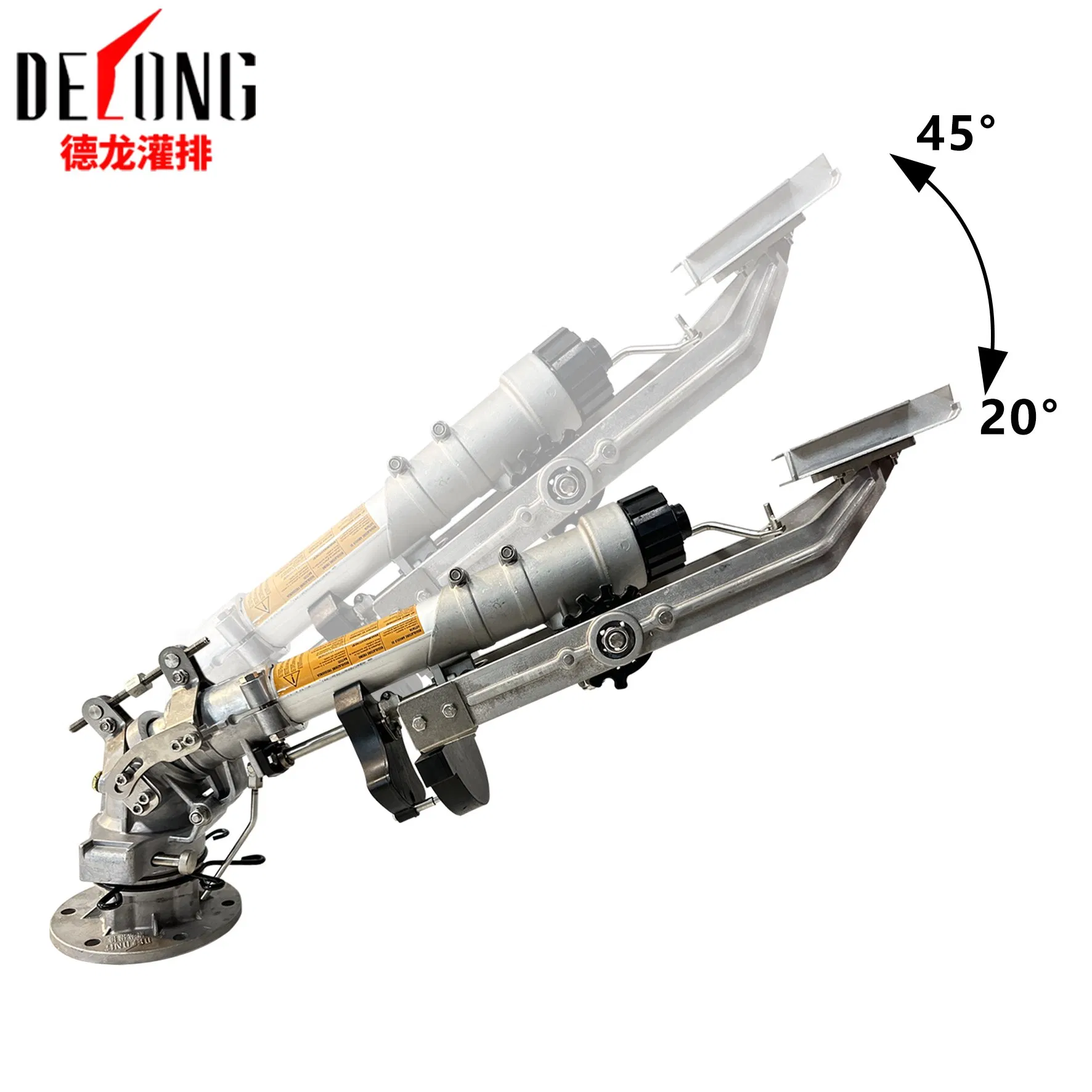

The injection jet elevation angle is adjustable between 20° and 45°, which helps optimize spraying patterns in windy conditions or under height limitations.
What are the primary applications of this metal rocker spray gun?

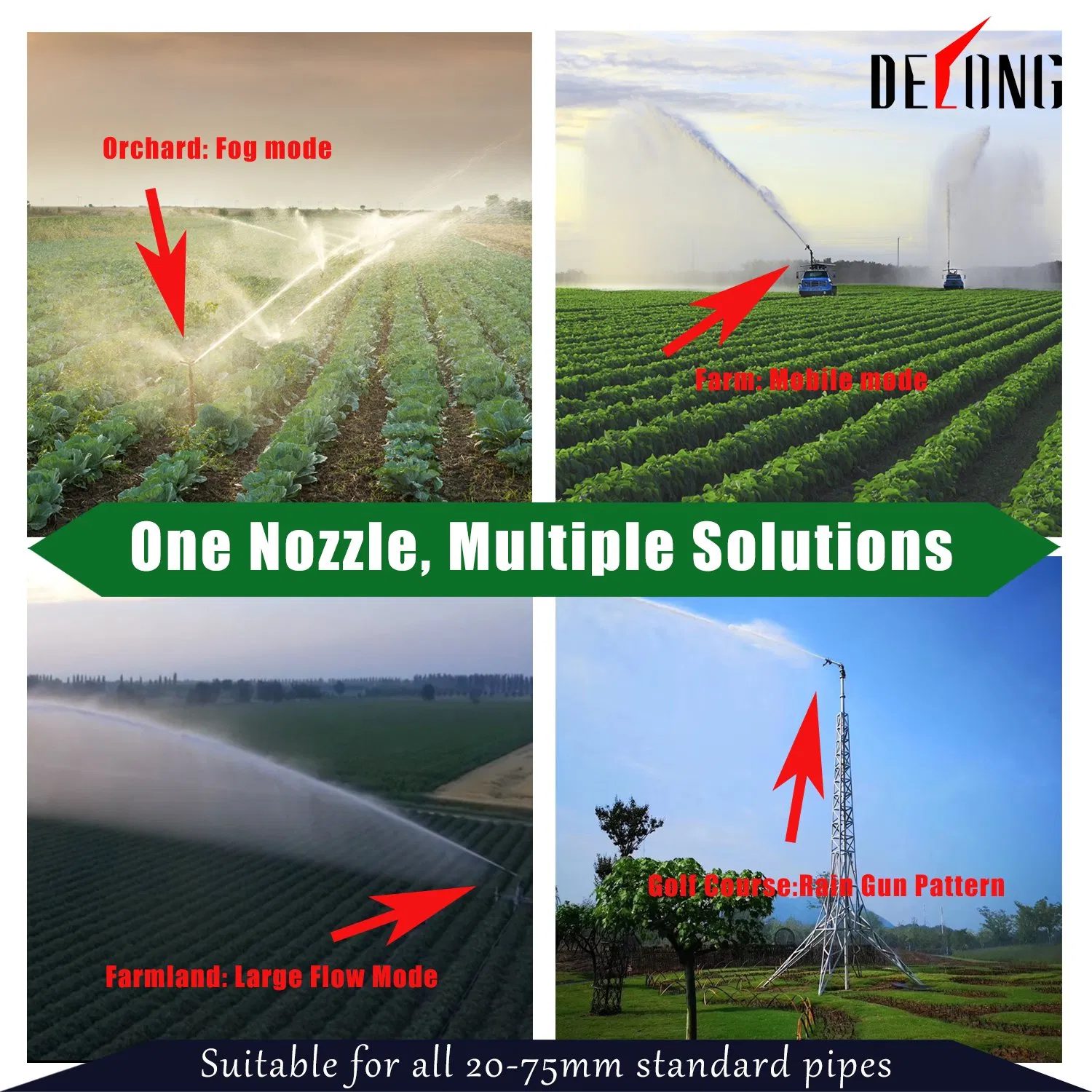

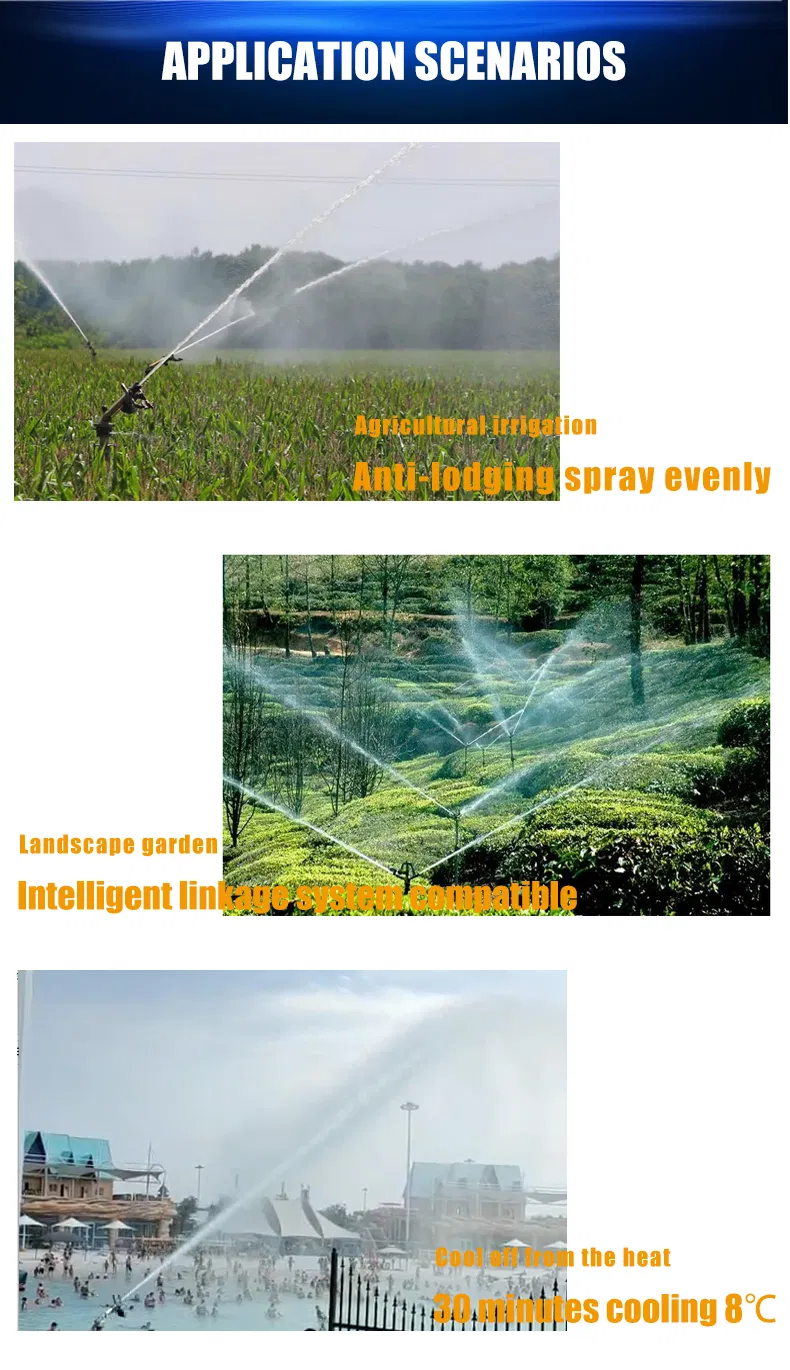

It is ideal for large/medium-sized winch irrigation, tail guns for pointer machines, agricultural and forestry irrigation, pasture watering, and industrial dust suppression in storage yards.
What operating pressure and flow rates does the system support?
The working pressure is 2-8 bar, and it achieves flow rates from 15.5 m³/H up to 101.1 m³/H depending on the configuration.
Are different nozzle sizes supported?
Yes, the spray gun supports a wide range of nozzle diameters from 14mm to 30mm, making it highly adaptable to different soil and environmental requirements.
What is the product warranty period?
The product comes with a standard 1-year warranty for peace of mind.
