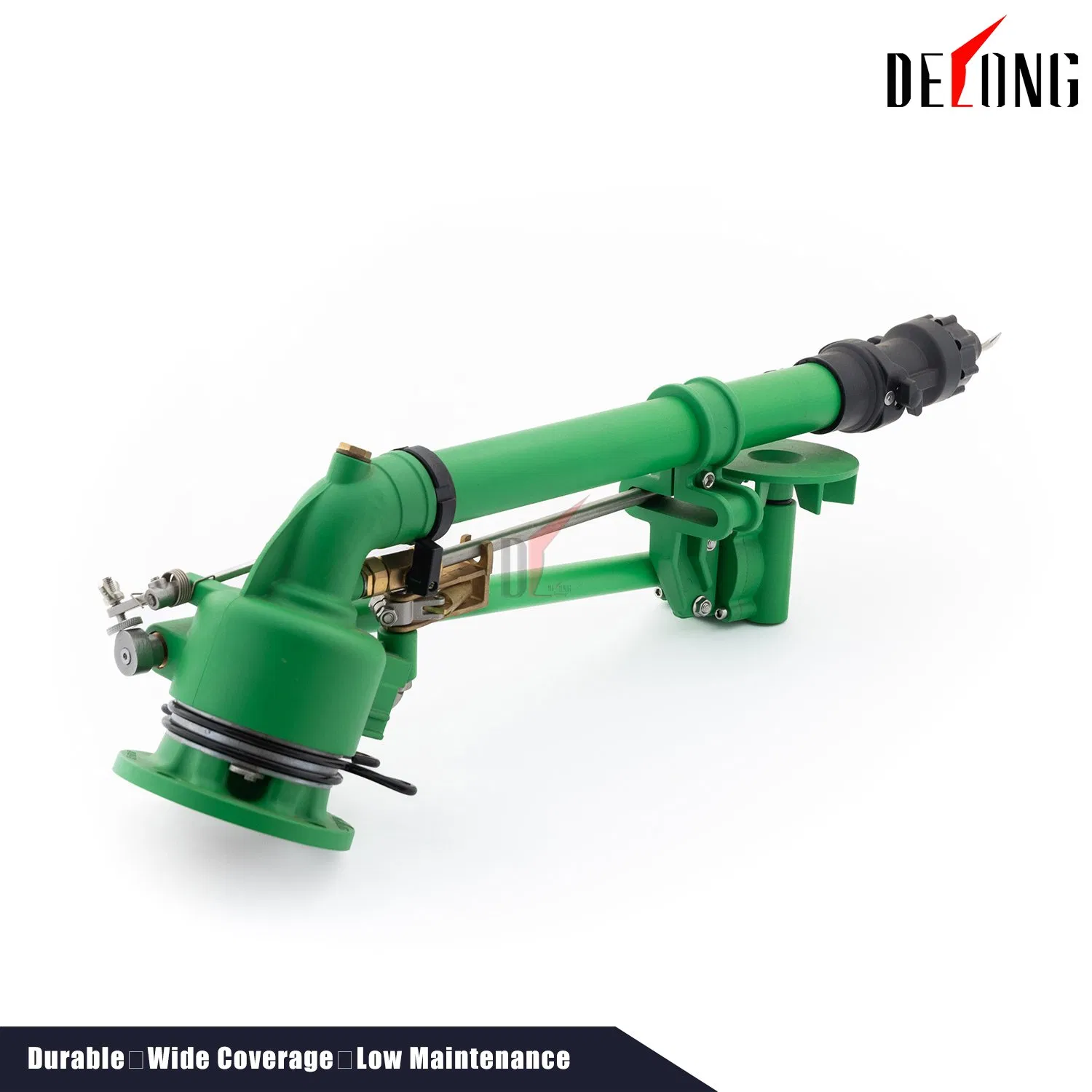

The DLPL45T sprinkler gun is designed for both agricultural irrigation and industrial dust suppression applications. It supports the global promotion of water-saving irrigation technology, which plays a crucial role in addressing water shortages, improving crop yields, and advancing sustainable agriculture, especially in arid and semi-arid regions.

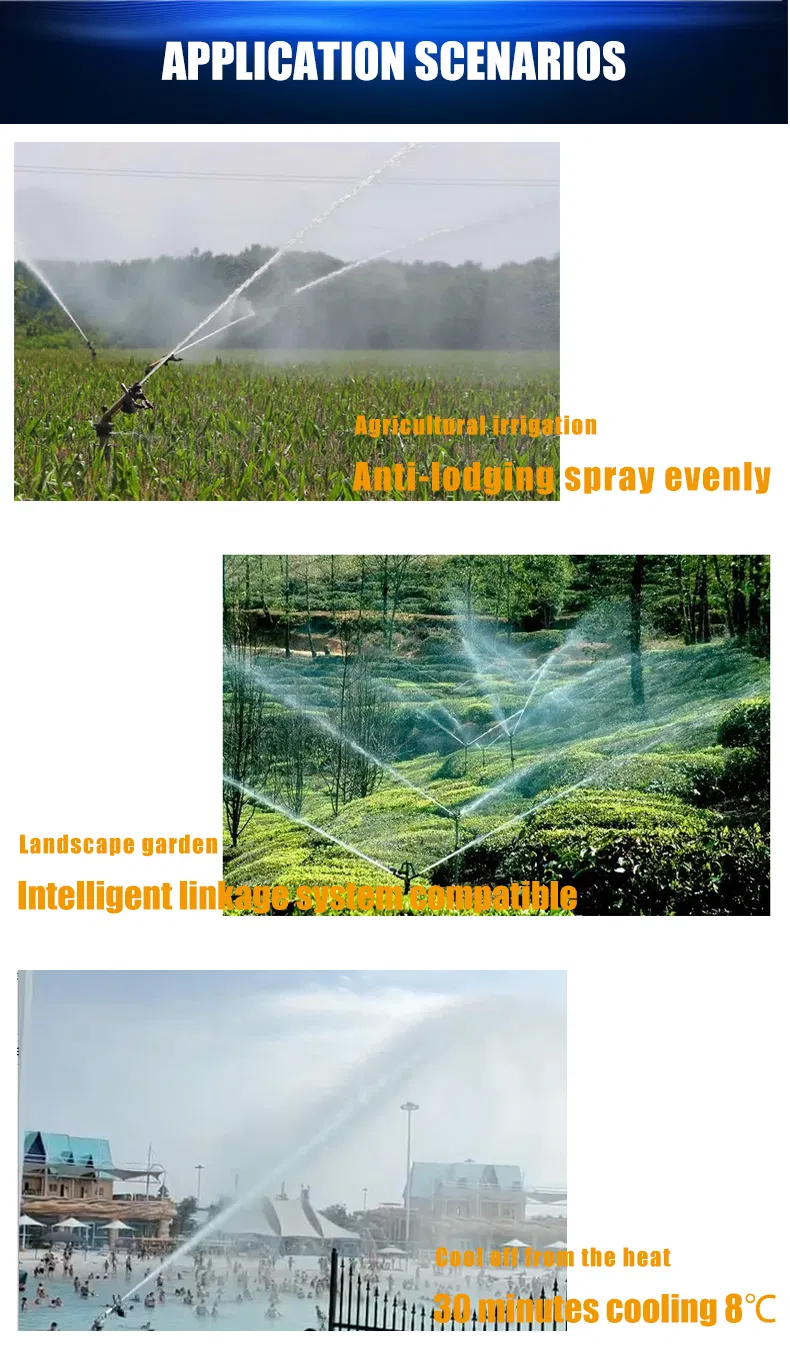

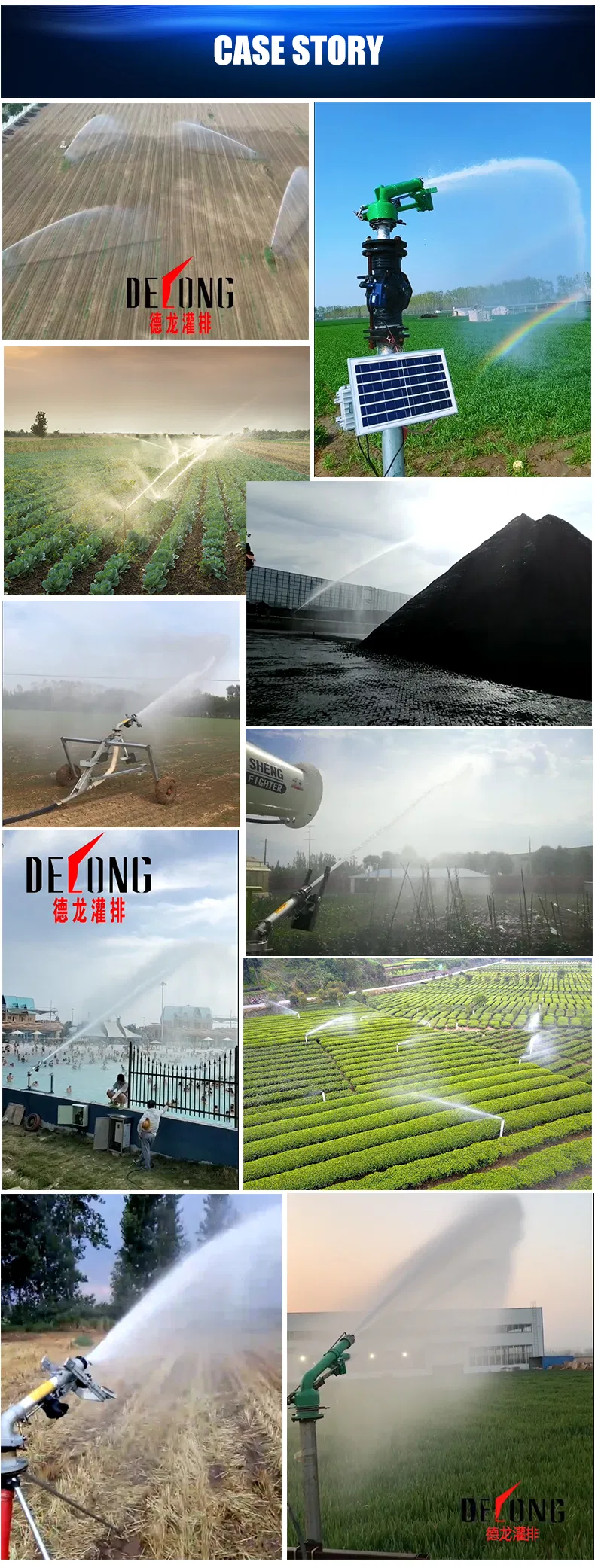

This model is compatible with large and medium-sized disc sprinkler systems, and can also be used as the tail gun for center pivot irrigation machines. It is widely applicable in:

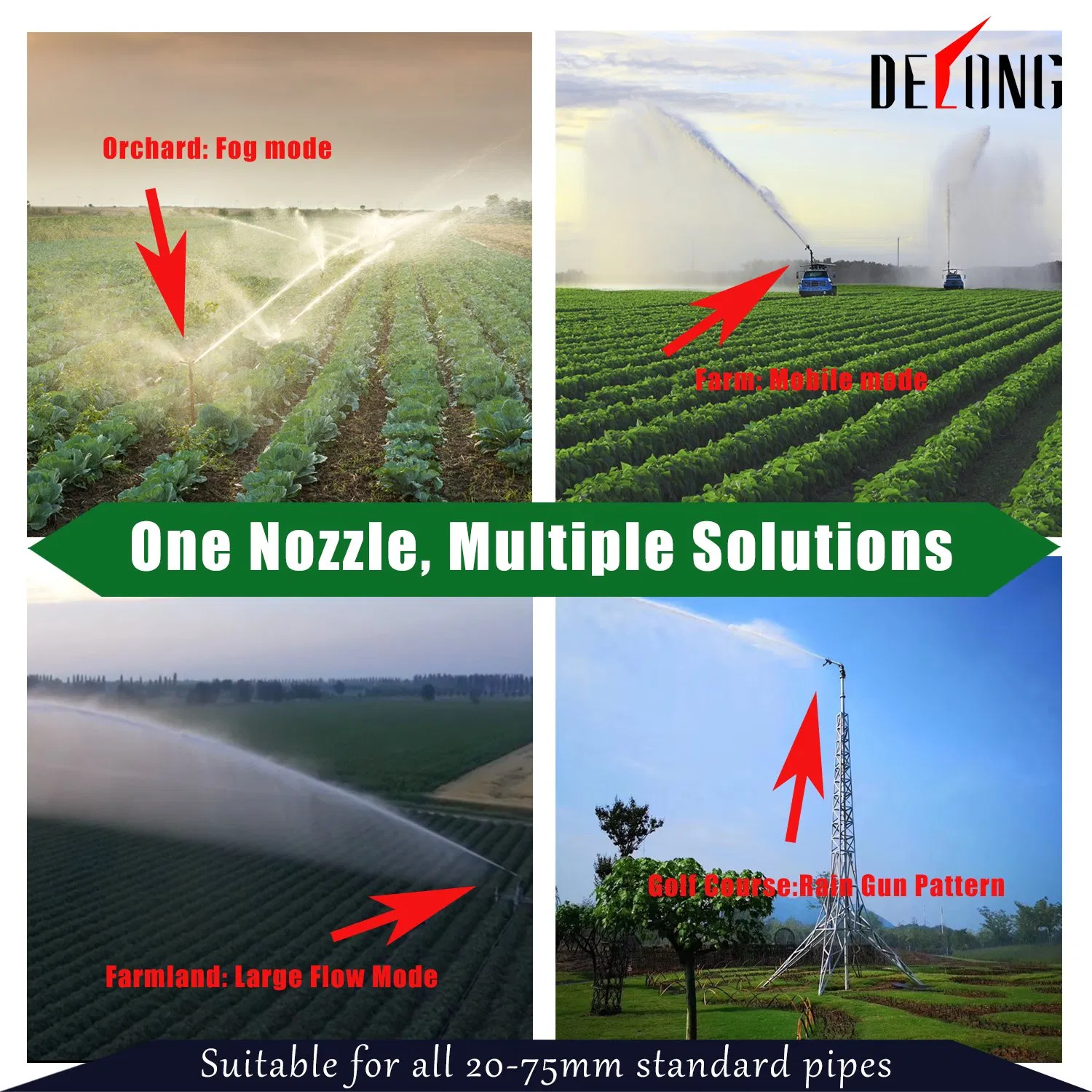

Field irrigation projects
Landscaping and green space maintenance
Industrial dust suppression in power plants, ports, wharves, railway freight yards, coal yards, and chemical plants
The DLPL45T effectively reduces airborne dust and significantly lowers PM2.5 levels, improving environmental quality in both agricultural and industrial settings.
Key Specifications:
Flow rate: 7.2 m³/h - 56.8 m³/h
Working pressure: 0.2 MPa - 0.6 MPa
Spray range: 20 m - 50 m

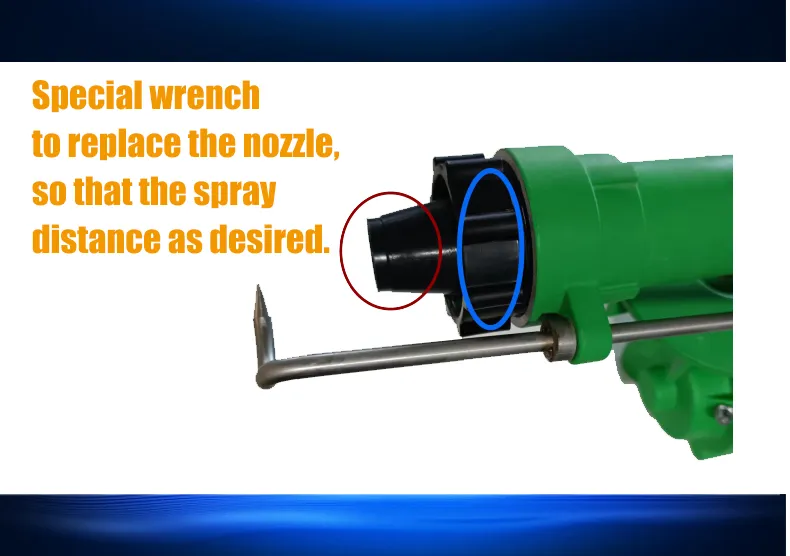

Adjustable nozzles: Multiple calibers available to suit various soil types, crops, terrain conditions, and site-specific needs
With reliable performance, strong sealing, and high adaptability, the DLPL45T is a versatile solution for efficient water use and effective dust control.
Nozzle Diameter (U)
Pressure (P)
Range (Q)
Rate of Flow (G)
mm
bar
m
m³/h
10
2
20
7.2
3
22
8.8
4
24.5
10.2
5
27.5
11.4
12
2
22
9.5
3
25
11.6
4
28
13.4
5
31
15.1
14
2
24
12.3
3
27
15
4
30
17.4
5
33
19.4
16
2
26
15.4
3
29
18.9
4
32
21.8
5
35
24.3
18
2
28
19.2
3
31
23.3
4
34
26.9
5
37
30.2
20
2
30
23.1
3
33
28.6
4
37
32.7
5
41
36.5
22
3
36.5
34
4
40.5
39.4
5
44.5
44.1
6
47.5
48.3
24
3
38
40.1
4
42
46.3
5
46.5
51.8
6
50
56.8
Frequently Asked Questions
What are the primary applications of the DLPL45T sprinkler gun?
The DLPL45T sprinkler gun is highly versatile and designed for agricultural field irrigation, landscaping and green space maintenance, and industrial dust suppression in areas like power plants, ports, railway yards, and coal yards.
What is the range and flow rate of this sprinkler gun?
It offers a spray range diameter of 40 to 100 meters (with single nozzle spray ranges from 20m to 50m) and supports a flow rate from 7.2 m³/h up to 56.8 m³/h depending on the configurations.
What nozzles are compatible with the DLPL45T?
This model features adjustable nozzles with multiple calibers available from 10mm to 24mm to suit different soil conditions, crop requirements, and site structures.
How does the DLPL45T assist in dust control?
In industrial applications, the sprinkler gun efficiently targets and reduces airborne dust, significantly lowering PM2.5 levels to improve air and environmental quality.
What is the working pressure requirements for the DLPL45T?
The recommended working pressure range for optimal performance is between 2 bar and 6 bar (0.2 MPa to 0.6 MPa).
