TEC magnetostrictive displacement sensor is a new generation of linear displacement sensor. It can provide users with real-time, reliable, accurate and continuous linear displacement signals under harsh working environment, and is widely used in metallurgical equipment, wind power equipment, construction machinery, rubber machinery, port machinery, energy and other industrial automation fields.
Specification
Magnet ring speed arbitrary
Input voltage +24Vdc±20%
Polarity protection Maximum -30Vdc
Overpressure protection Maximum 36Vdc
Insulation resistance > 10MΩ
Insulation strength 500V
Outgoing line connection DIN46530(A)
Measuring rod Aluminum alloy
Position magnet Suspension magnet
Installation direction Any direction
Non-usable area at head and end 72.5mm + 72.5mm (customizable)
Details Images

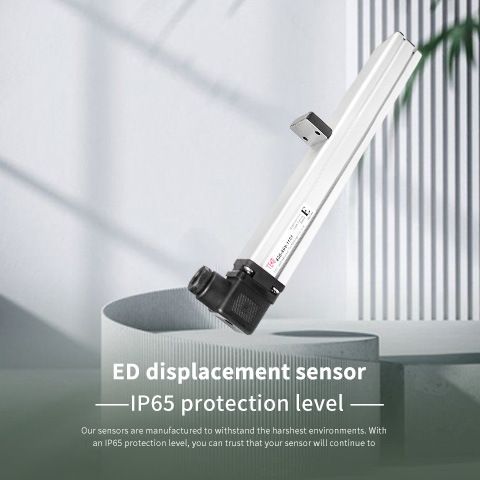

TEC displacement sensor detailed view 1

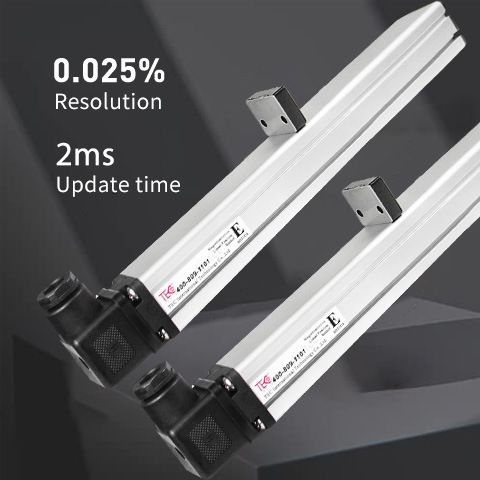

TEC displacement sensor detailed view 2

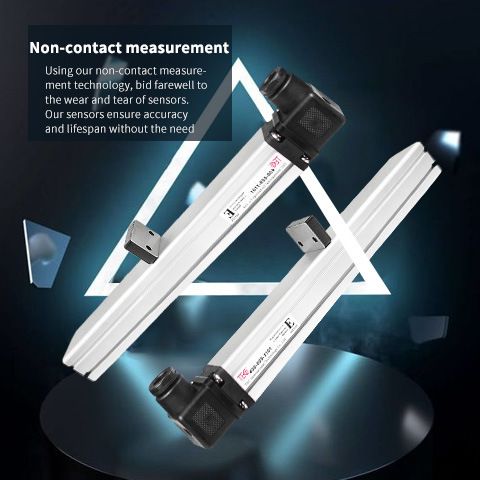

TEC displacement sensor detailed view 3

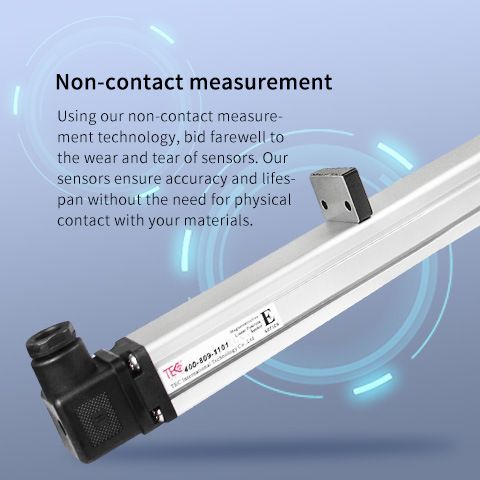

TEC displacement sensor detailed view 4

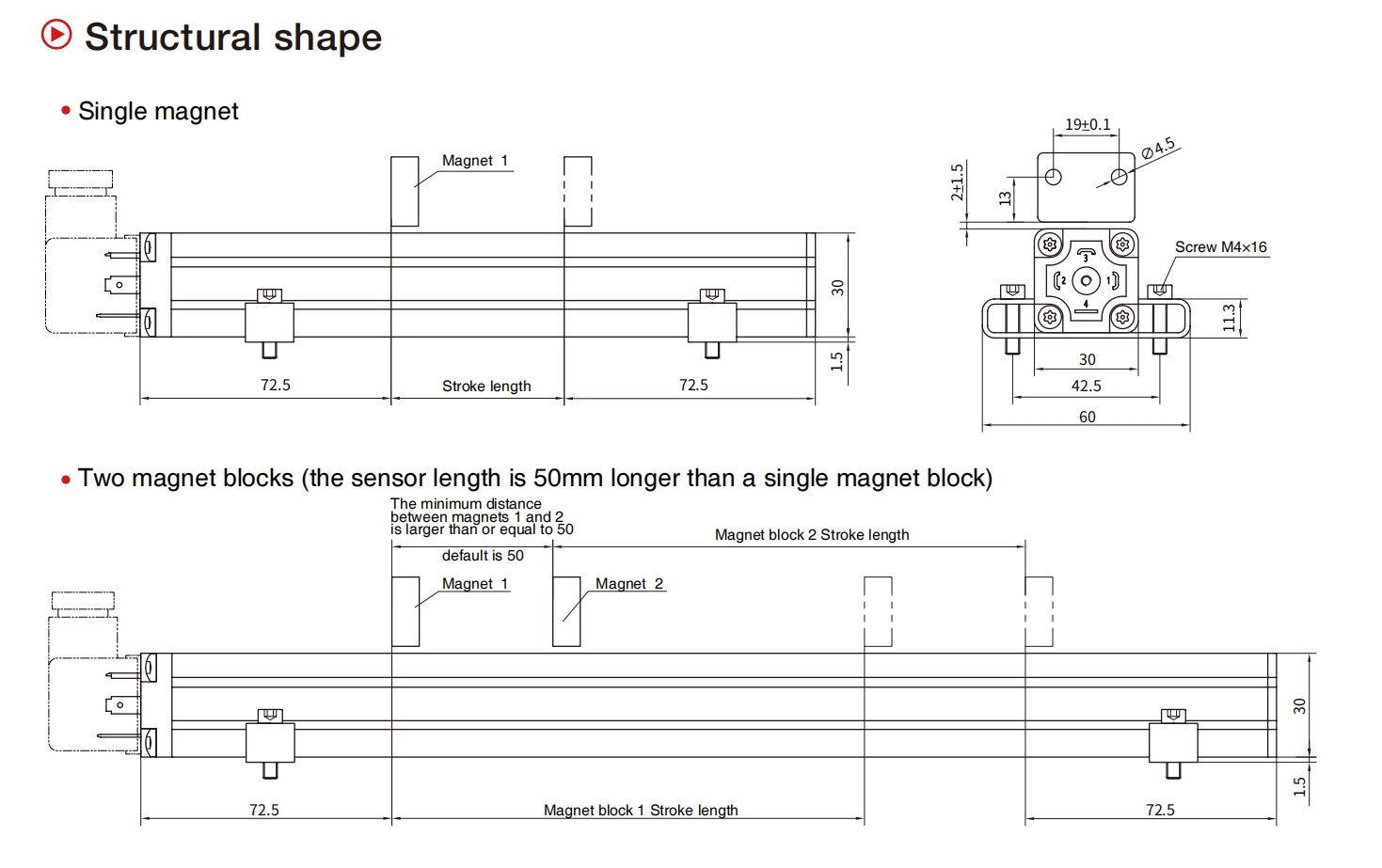

TEC displacement sensor dimensional drawing
Frequently Asked Questions (FAQ)
What industries is the TEC magnetostrictive displacement sensor used in?
It is widely used in industrial automation fields such as metallurgical equipment, wind power equipment, construction machinery, rubber machinery, port machinery, and energy industries.
What is the operating voltage range and electrical protection of this sensor?
The input voltage required is +24Vdc ± 20%. It features polarity protection up to a maximum of -30Vdc and overpressure protection up to a maximum of 36Vdc.
Can the installation orientation be customized?
The sensor and its position magnet can be installed in any direction according to your system requirements.
What material is used for the measuring rod?
The measuring rod is constructed from a high-grade aluminum alloy, providing excellent durability and protection.
What is the default non-usable area, and is it customizable?
The standard non-usable area at the head and end is 72.5mm + 72.5mm. However, this configuration can be customized based on your specific requirements.
