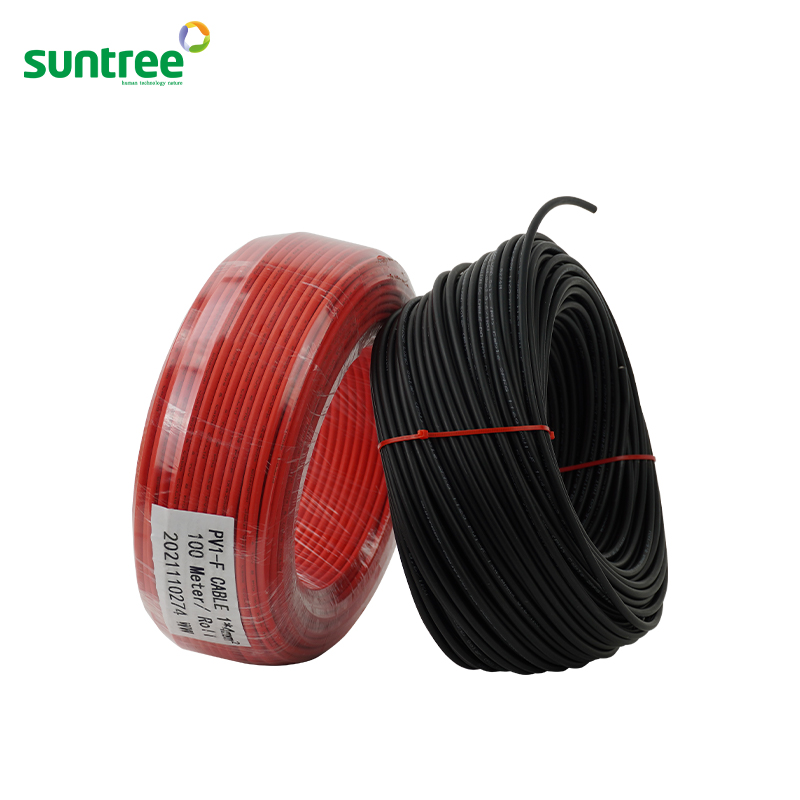

| Single Core | Cross section mm² | Strand design No.x ø(mm) | Conductor diameter mm | Conductor diameter Ω /km | Outer diameter mm |
|---|---|---|---|---|---|
| PV-1*1.5 mm² | 1.5 | 30x ø 0.25 | 1.6 | 13.9 | 4.5 |
| PV-1*2.5 mm² | 2.5 | 48x ø 0.25 | 2.0 | 8.06 | 5.3 |
| PV-1*4.0 mm² | 4.0 | 56x ø 0.3 | 2.6 | 4.97 | 6.2 |
| PV-1*6.0 mm² | 6.0 | 81x ø 0.3 | 3.3 | 3.52 | 7.2 |
| PV-1*10.0 mm² | 10.0 | 200x ø 0.25 | 4.4 | 2.12 | 8.3 |
| PV-1*16 mm² | 16.0 | 224x ø 0.3 | 5.2 | 1.95 | 9.5 |
