Built with high-quality and durable raw materials:

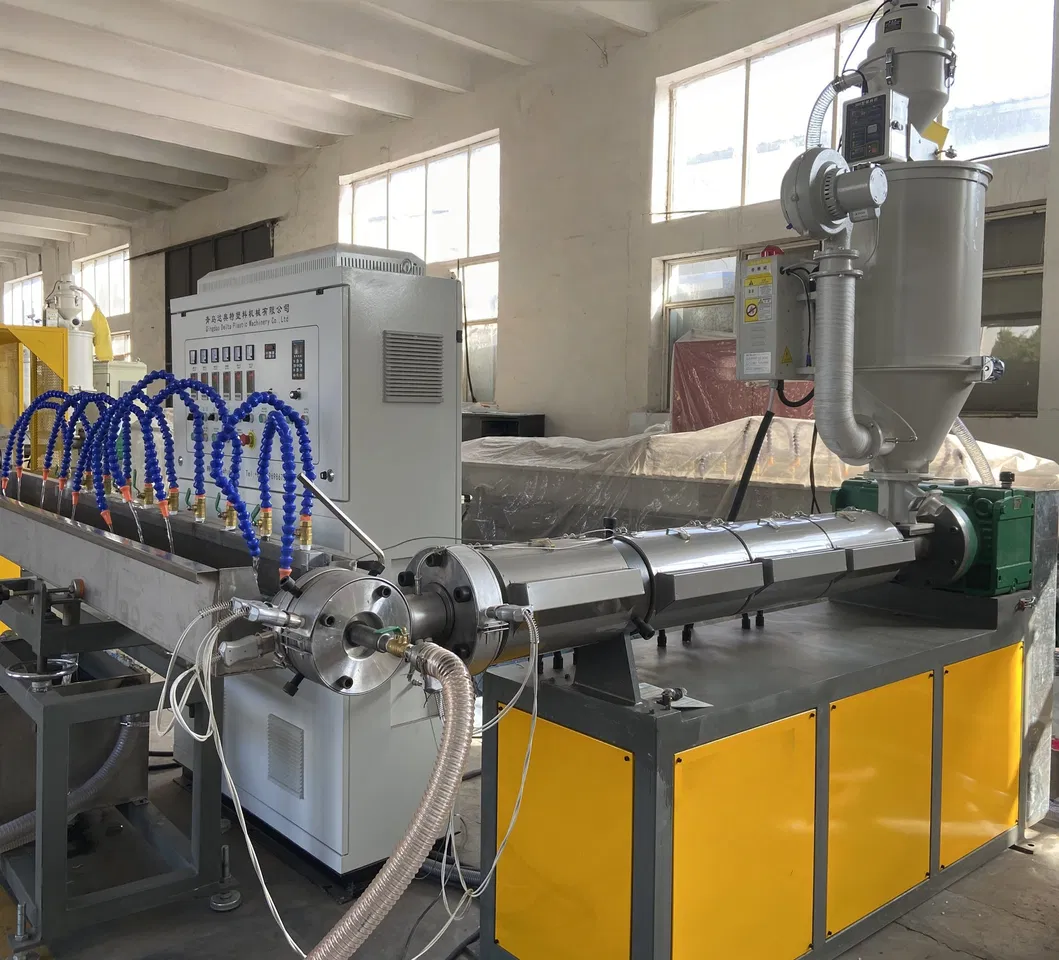

Professional engineering design. High-quality mold steel ensures precision shaping and prolonged service life.

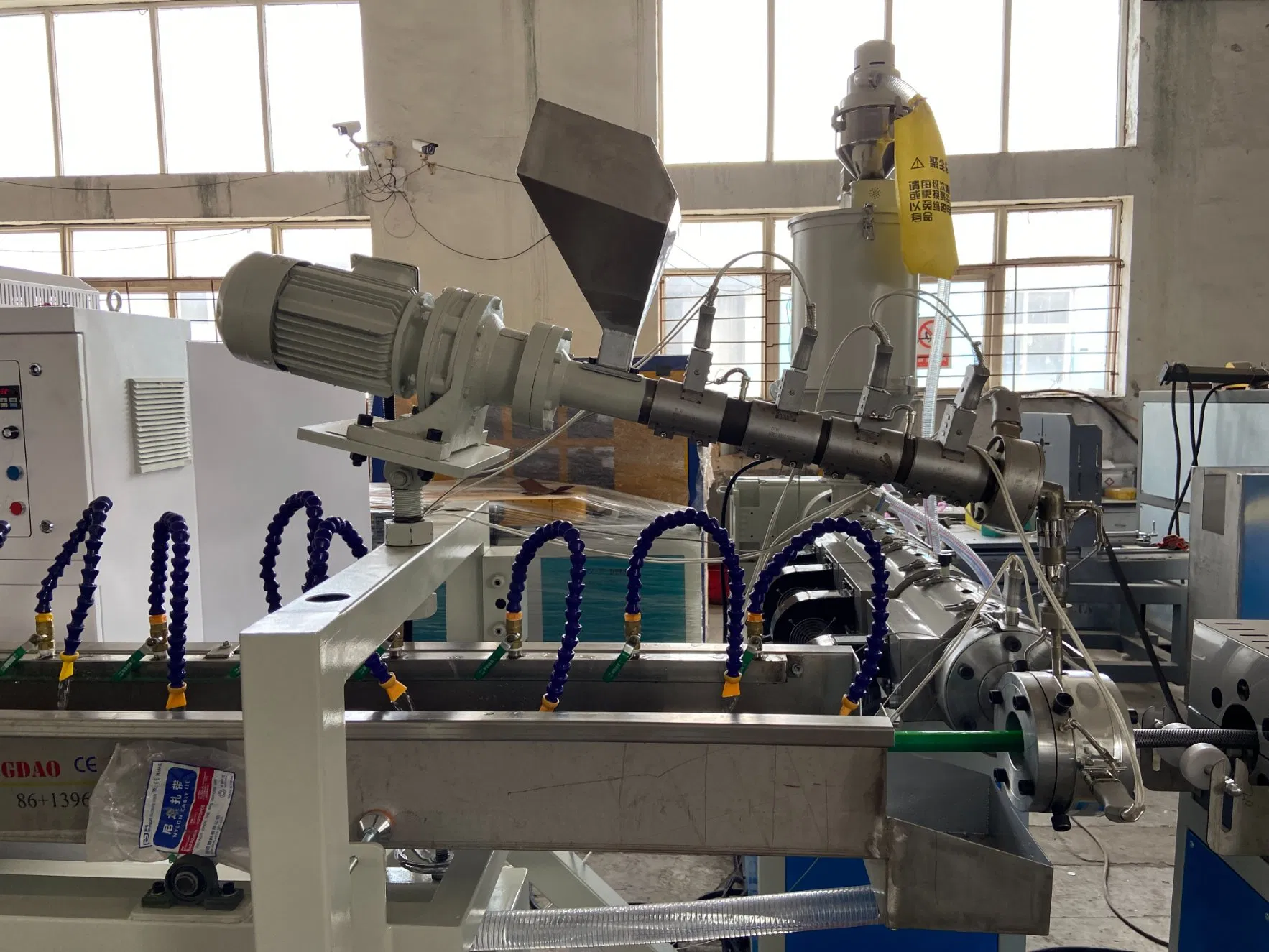

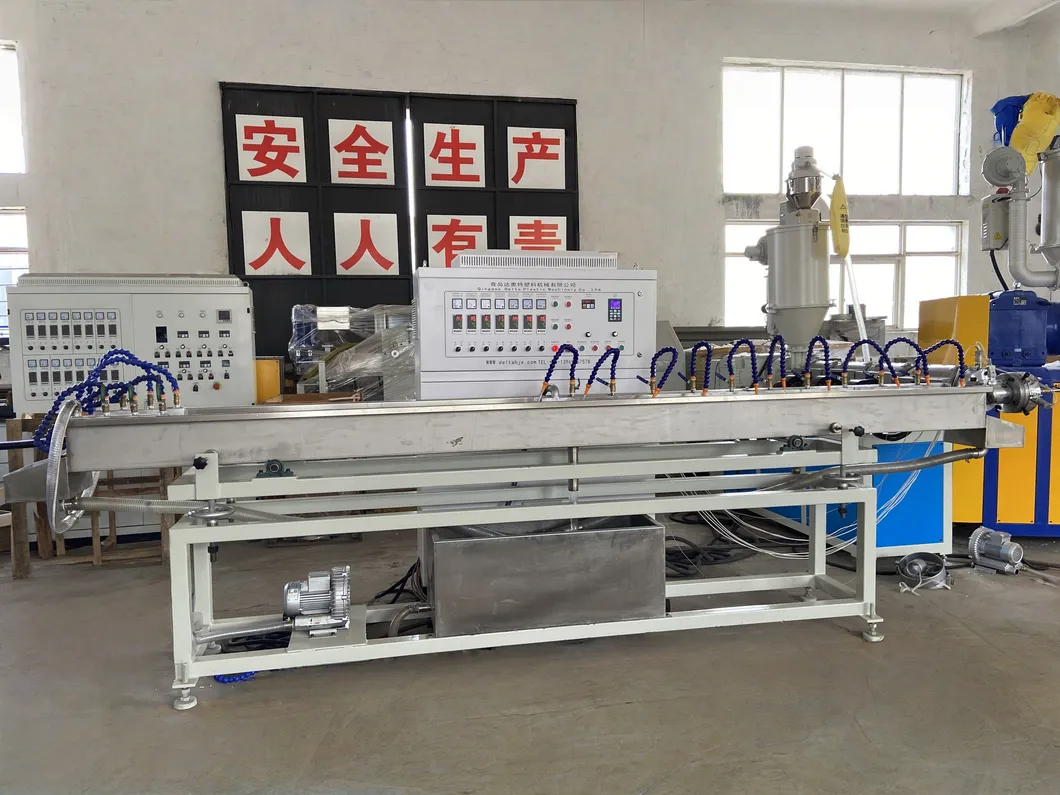

Constructed with robust, high-grade stainless steel. Includes a supplementary water storage tank and a 4-direction water spray cooling configuration.

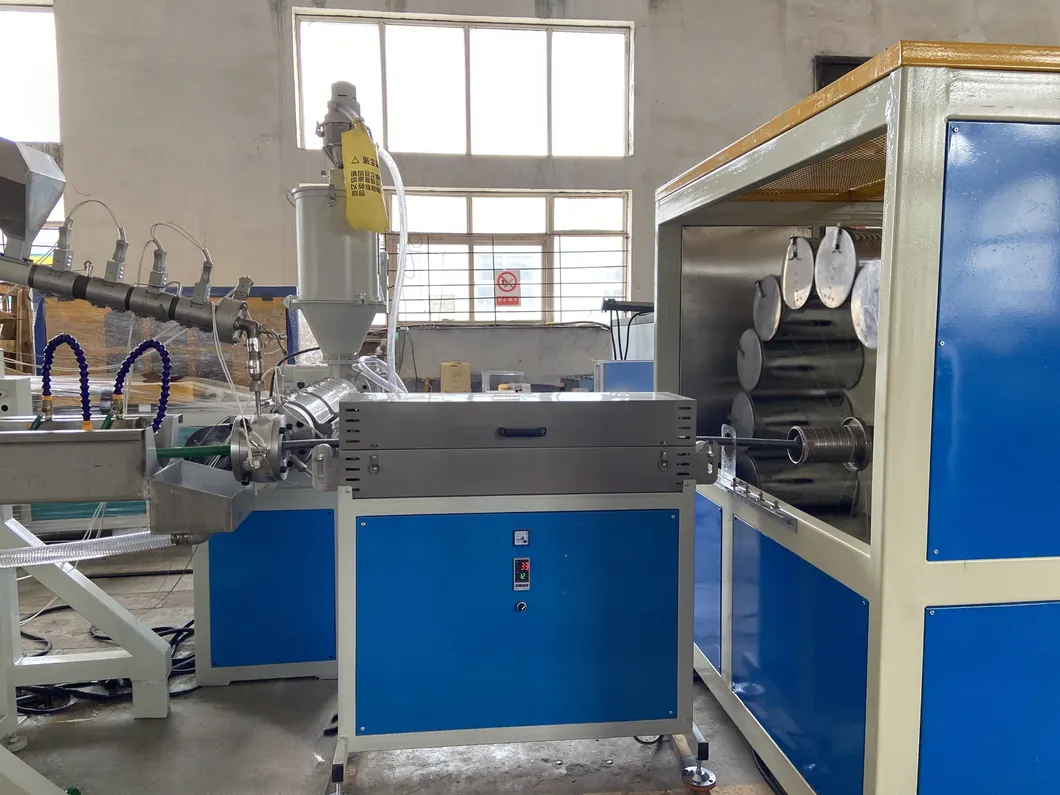

Features a double-layer heating chamber. The center layer utilizes high-grade insulation material to retain heat longer and minimize energy consumption.

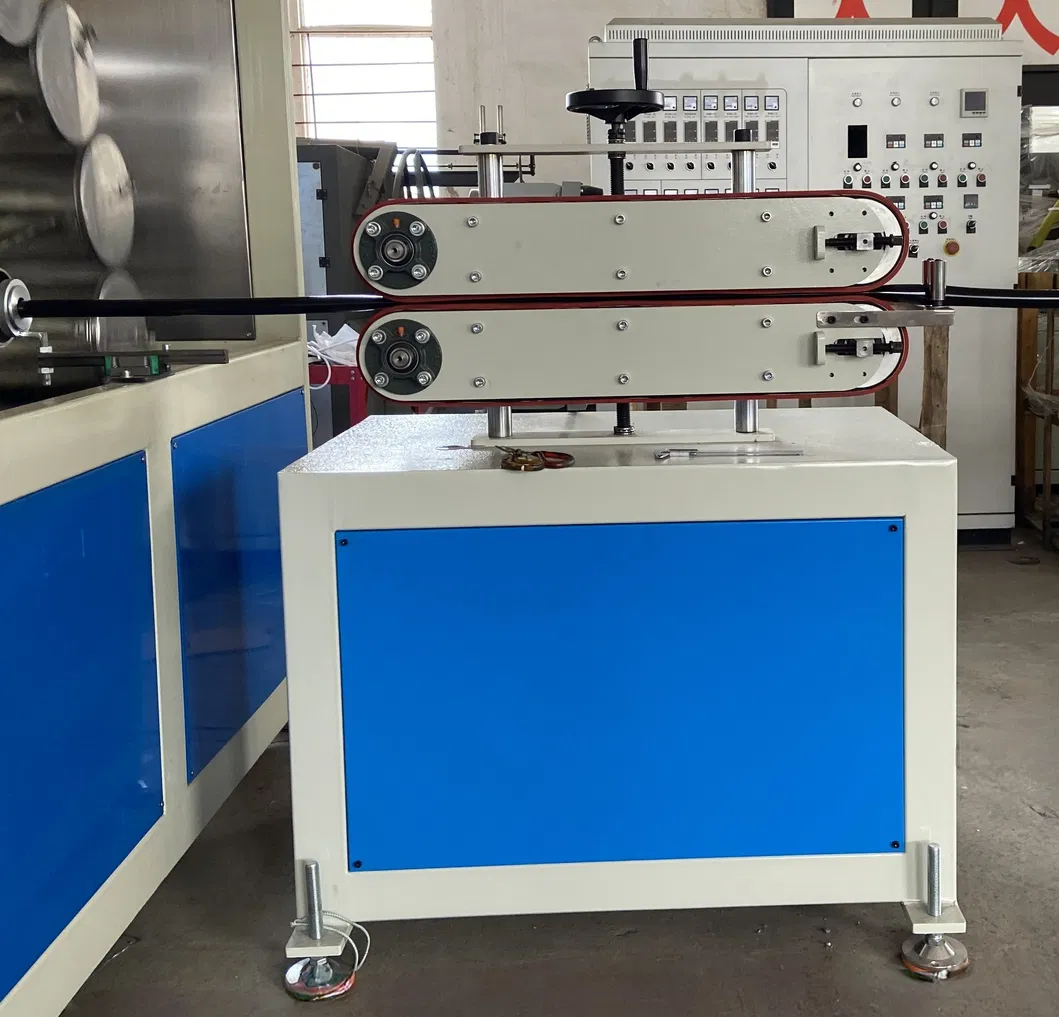

Uniquely designed for flexible hoses, allowing pulling operations without causing any deformation to the hose profile.

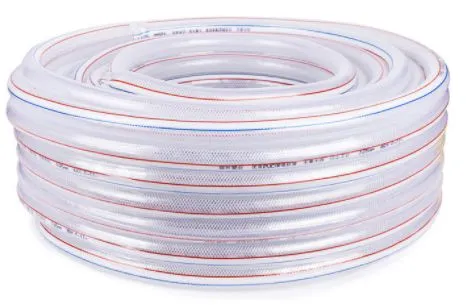

Supports the application of multi-color stripes to the outer layer of the hose.

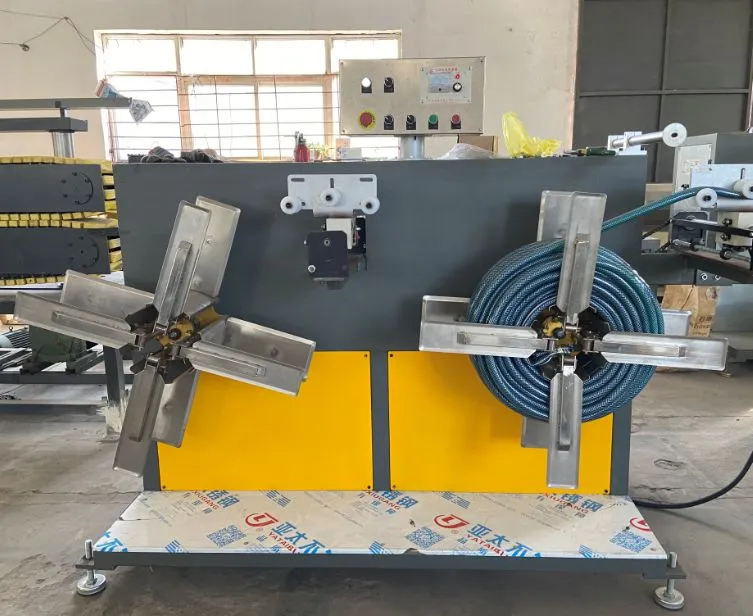

Specialized coiler design for soft PVC hoses. Employs a torque motor control to regulate winding tension corresponding to coil weight without altering the hose shape.

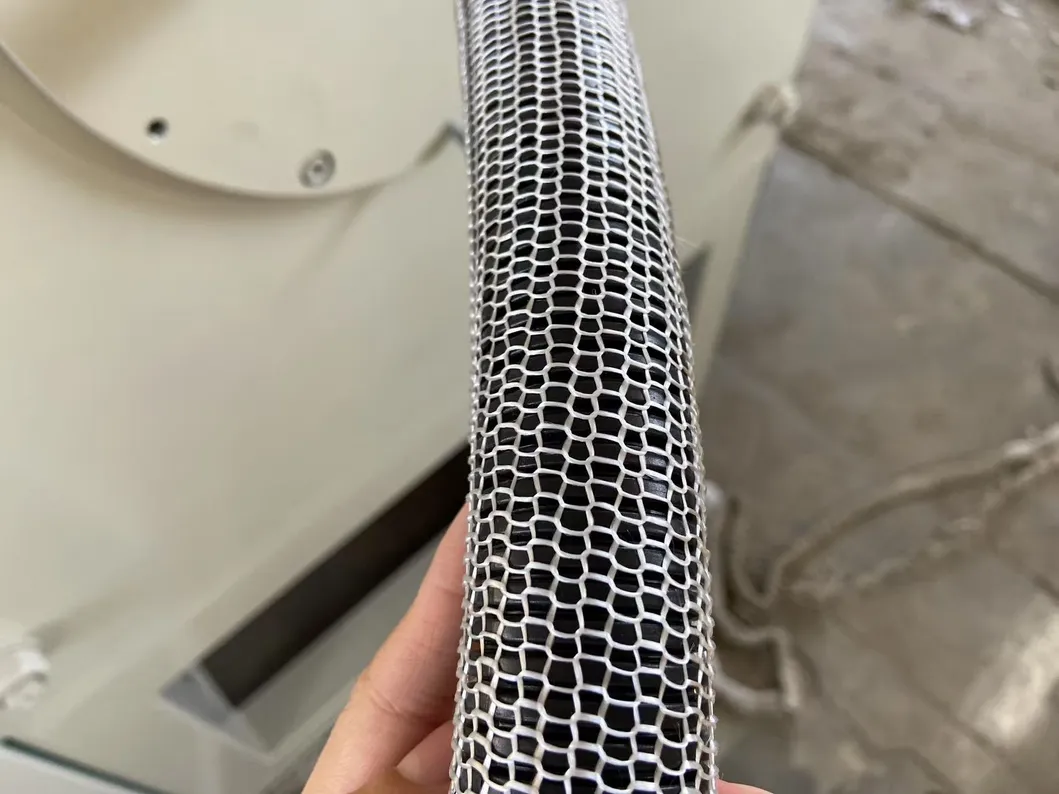

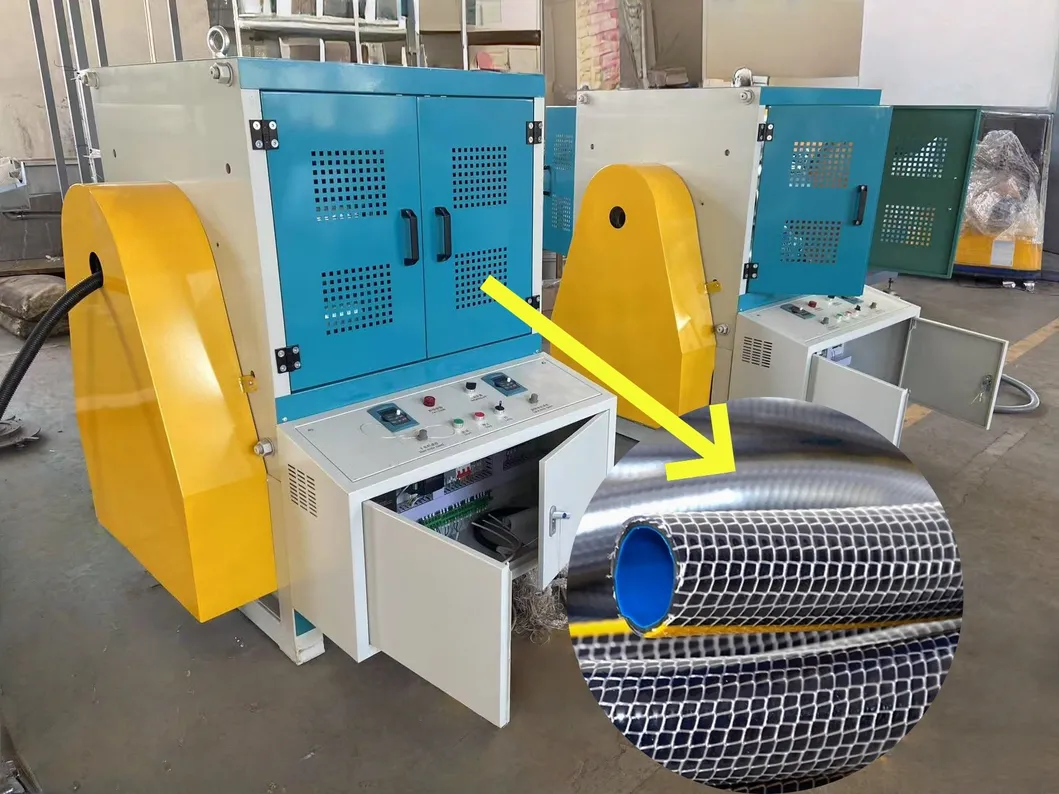

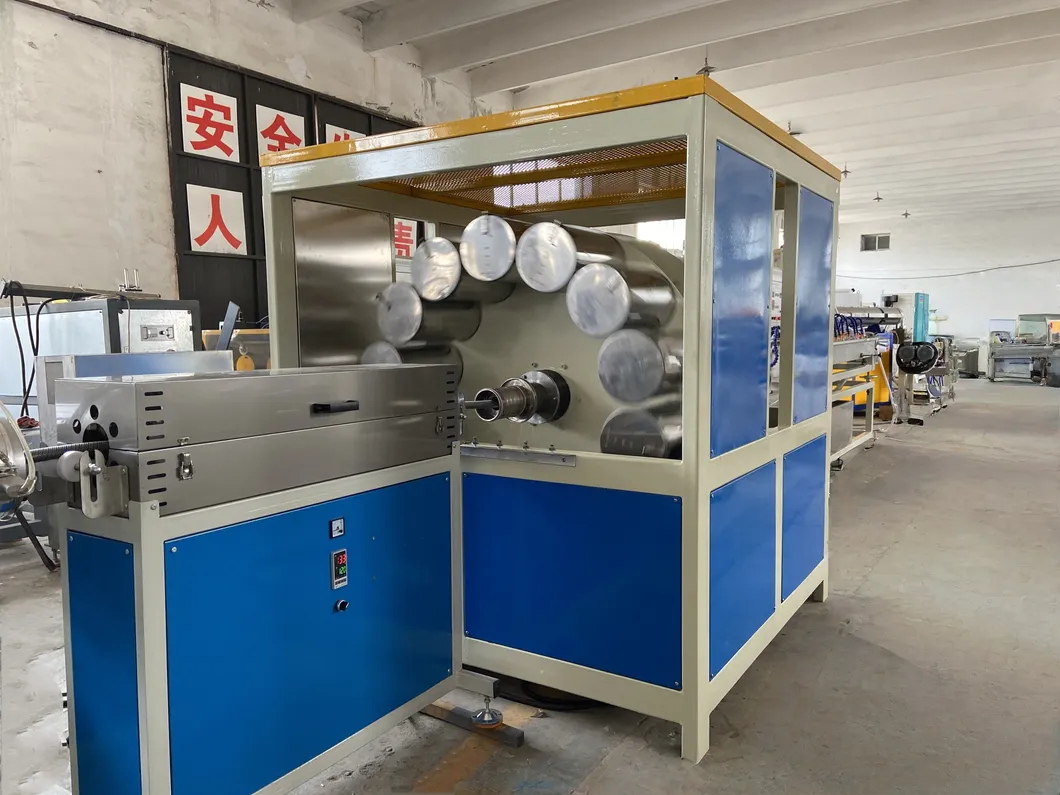

Equipped with a specialized hook braiding method that substantially improves hose pressure resistance and durability.
Available in various configurations including UV and CO2 options to print branding or specifications in different colors.

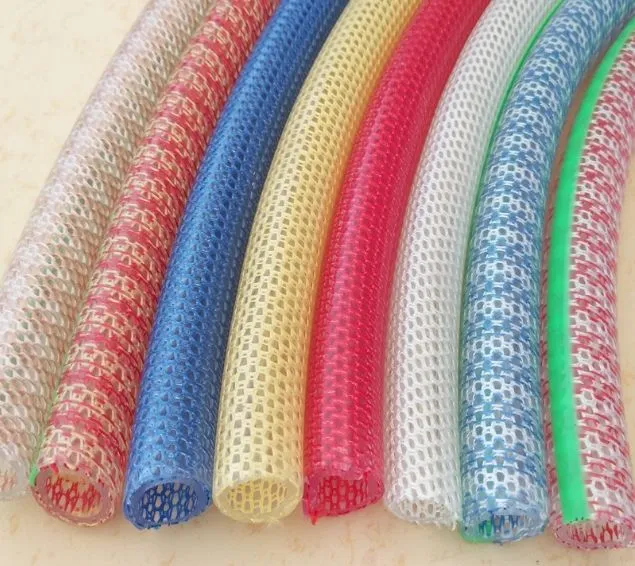

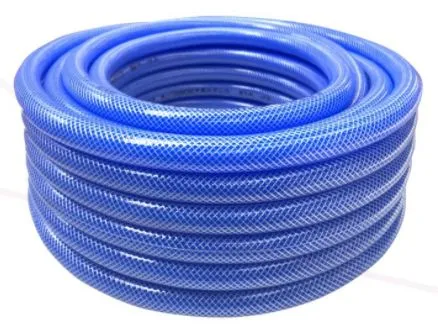

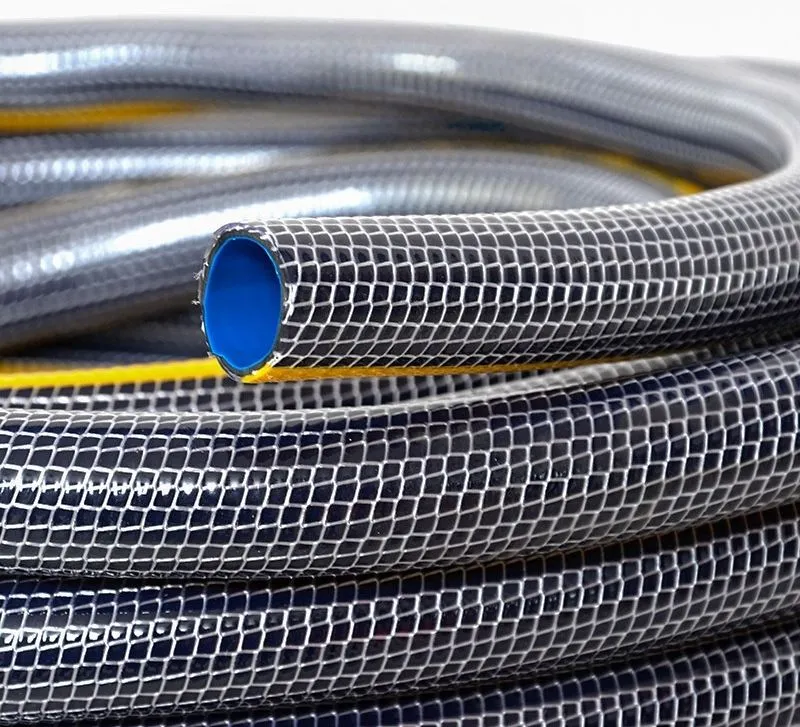

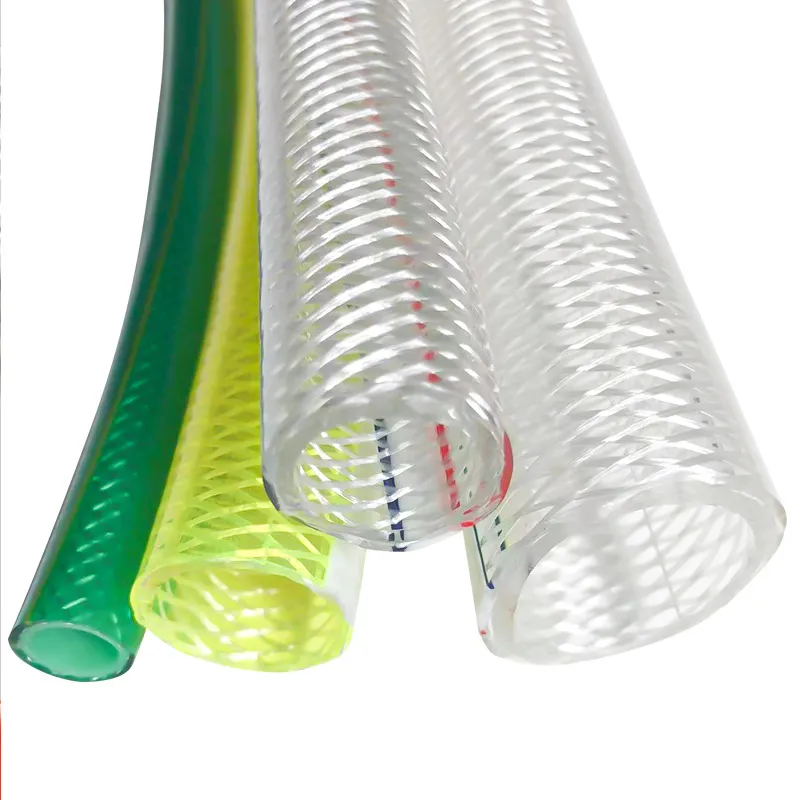

Perfect for producing hoses utilized in: Garden & Lawn Irrigation, Agricultural & Greenhouse Use, Household Water Supply, and Industrial/Construction Water Flow.
| Item | Specification |
|---|---|
| Hose Diameter Range | Ø6mm - Ø75mm |
| Production Speed | 10 - 25 m/min |
| Number of Layers | three layers with color stripe |
| Extruder Motor Power | 15kW - 30kW |
| Output Capacity | 20kg/h - 150kg/h |
| Dimension (L*W*H) (mm) | 12000*3000*1400 |
| Total weight (kg) | 4500 |

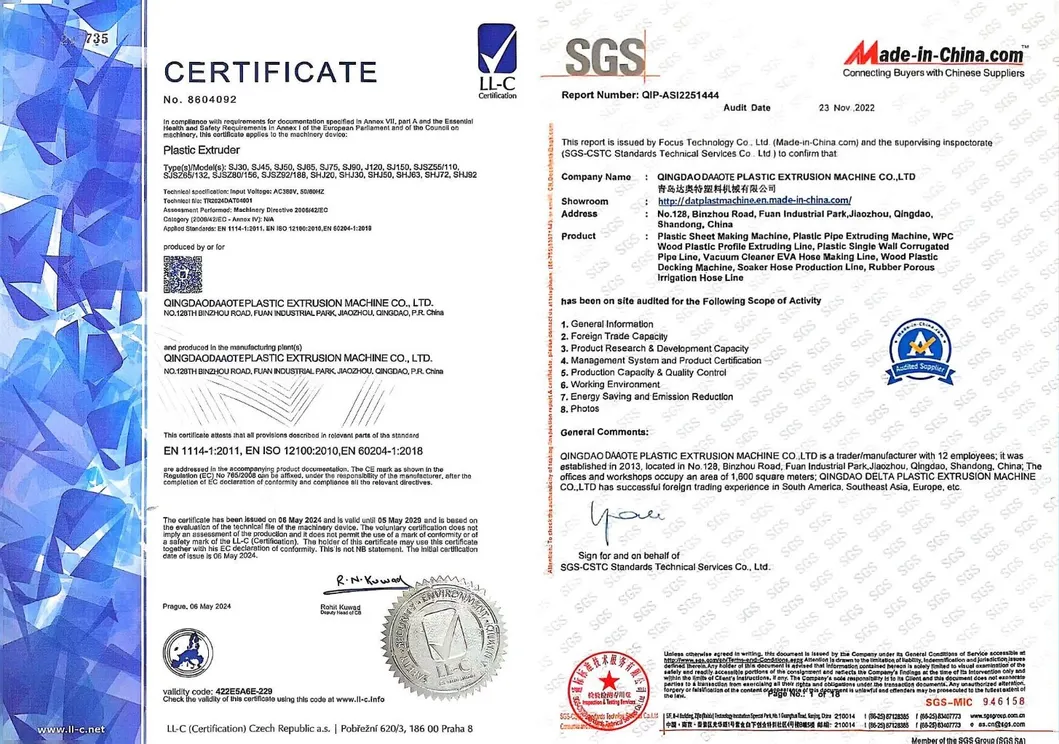

Our machinery complies with European safety standards.
We hold extensive experience exporting to: Germany, Poland, Ukraine, Belarus, Romania, Portugal, France, Turkey, Egypt, Tunisia, Dubai, Kuwait, Pakistan, Uzbekistan, Brazil, Argentina, Chile, USA, Russia, U.K., and others. Our equipment has been showcased in major exhibitions globally.
We specialize in designing and manufacturing high-caliber plastic extrusion machinery. With a 15-year history, we produce EVA, PVC, PE, PP, and PU spiral hose extrusion setups, soft hose lines, reinforced hose production lines, PP/PE corrugated systems, PP/PET strap extruders, polyester fiber packing belt equipment, and plastic recycling granulators.
Our global footprint spans across key markets including the USA, Russia, Ukraine, Uzbekistan, Belarus, Turkey, Romania, UAE, Syria, Egypt, Tunisia, Algeria, Brazil, Argentina, Mexico, Peru, Poland, and France.
