Spray seeding is more and more applied in road greening. The application of seeding spraying technology in vegetation restoration and slope protection project.

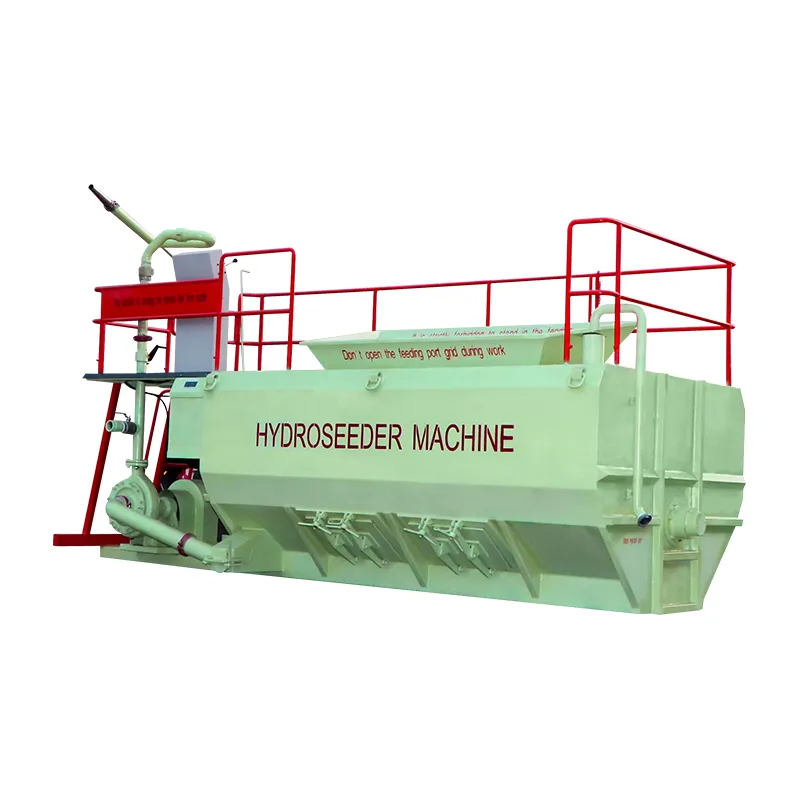

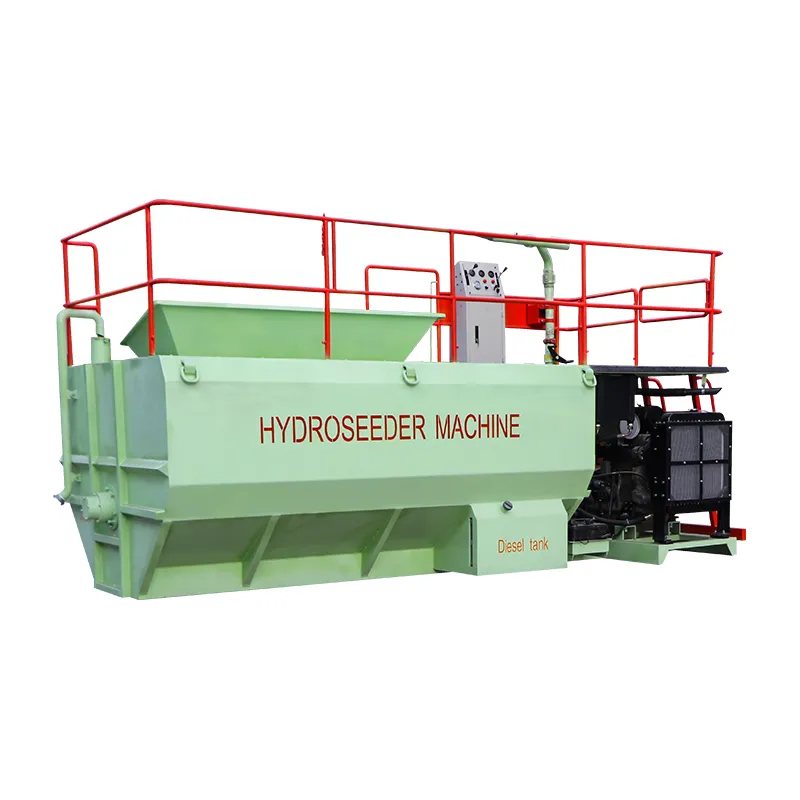

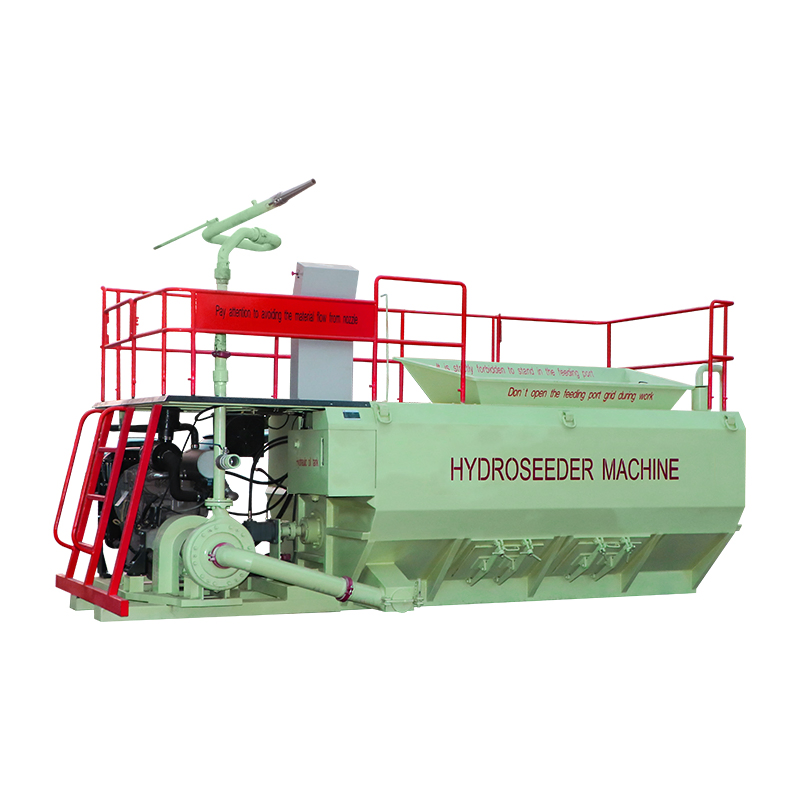

PB series artificial soil spraying seeder involves in planting permanent vegetation, spraying slurry, slope protection, grassing and erosion prevention.
Soil spraying seeder driven by single diesel, electronic control, easy operation, especially suitable for outdoor conditions, applicable to all kinds of rock slope, hard soil, poor soil, acidic soil, arid zones, clay soil and coastal dam etc.
| Model | LHS4083 | LHS6083 | LHS8083 |
|---|---|---|---|
| Diesel engine | LRC4108T | LR4A3Z | LR4A3Z |
| Power | 63kw | 83kw | 83kw |
| Tank capacity | 4m³ | 6m³ | 8m³ |
| Output | 1350L/min | ||
| Output pressure | 8kgf/cm² | ||
| Max.Solid Content | Volume ratio 30%, weight ratio 60% | ||
| Max.aggregate | 20mm | ||
| Mixing mode | Hydraulic infinitely variable, blades mixing and circular jet mixing | ||
| Rotating speed of mixer shaft | 0-110rpm | ||
| Max. horizontal conveying distance | 38-45m with gun / 100-120m with hose | ||
| Max. vertical conveying distance | 40m with gun / 80m with hose | ||
| Spraying guns type | Fixed standing gun and pipe gun | ||
| Height of fence | 800mm | ||
| Net weight | 2650kg | 3200kg | |
| Dimension | 4600*2200*2400mm | 5500*2200*2500mm | |
| Model | LR4A3Z |
|---|---|
| Type of diesel engine | Turbo diesel engine, water-cool |
| Cylinder No. | 4 pieces |
| Cylinder dia.×Piston stroke(mm) | 105×125 |
| Capacity(L) | 4.33 |
| Rated power/rotating speed(kw/r/min) | 83/2400 |
| Max. torque point rotating speed(r/min) | 1600-1800 |
| Torque reserve | 22-25% |
| Fuel consumption rate of Declared working condition(g/kw·h) | ≤245 |
| Fuel consumption rate of Max.torque working condition(g/kw·h) | ≤242 |
| Oil consumption rate of Declared working condition (g/kw·h) | ≤1.63 |
| Idle speed(r/min) | 1000±30 |
| Cold starting performance | -10°C can start easily(without any assist) |
| High altitude(m) | ≤2200 |
| Ambient temperature of diesel engine working | -10°C~40°C |
| Direction of turning of diesel engine | Anticlockwise(facing power output side) |
| Net weight(kg) | 430 |
It is one year count from one month after shipping date except wearing parts. We will send some wearing parts of machine and diesel engine when delivery.
Usually we adopt Dongfanghong or Huangfeng diesel which is famous in China, we also can supply Cummins diesel and Deutz diesel.
The ratio is depends on the soil locally. So it is better for you to take some photo of your soil, and tell us the slope angle, height, soil condition, etc. then we will recommend you a suitable ratio.
Our hydroseeding equipment max. horizontal spraying distance is 38-45m with gun, max. vertical spraying distance is 40m with gun; max. horizontal conveying distance is 100-120m with hose, max. vertical conveying distance is 80m with hose.
For our PB series hydro seeder, its maximum of the slope angle is 60°, if it is larger than 60degree, it is better to choose our PB-15SR and PB-25SR series thicker hydro seeder.

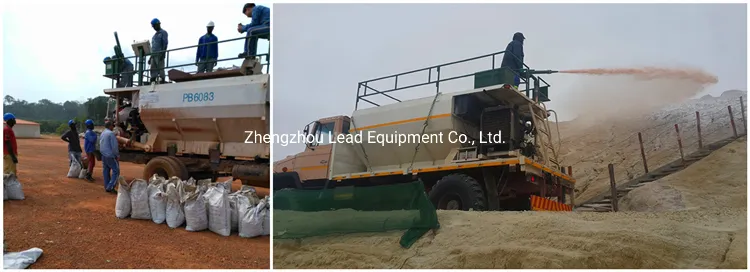

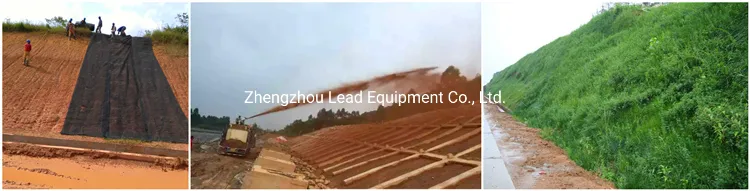

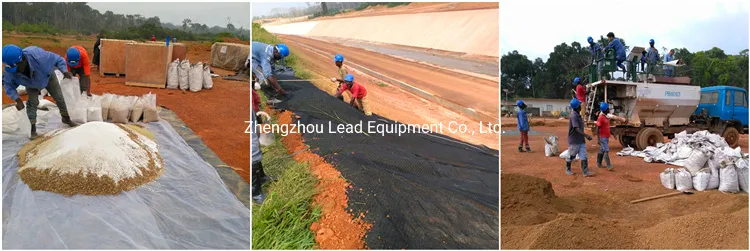

It is suitable for slope greening, golf course, lawn, or other landscape projects.
